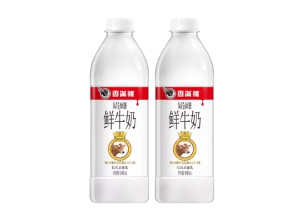

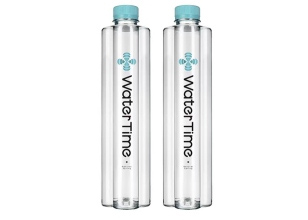

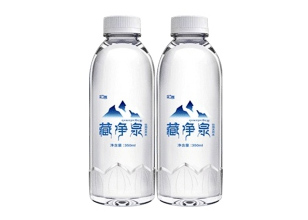

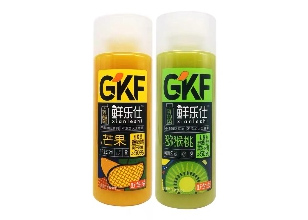

The Automatic Positioning Labeling Machine is a high-precision automatic labeling solution designed for round bottles, square bottles, flat bottles, tapered bottles and irregularly shaped containers. It supports single-label, double-sided, triple-label, full-wrap and fixed-position labeling, providing a flexible solution for different packaging formats.
Equipped with an ABB high-power servo label feeding system, a high-speed labeling station and dual touchscreen control, this Automatic Labeling Machine delivers stable label feeding, precise label positioning and efficient production performance.
The machine is particularly suitable for applications requiring accurate label placement on bottles with different shapes or specific positioning requirements. As a versatile Self-Adhesive Labeling Machine, it can also be configured for pressure-sensitive labels and multi-label applications.
| Number of work stations | 36 |
| Power supply | AC380V 50Hz 15KW |
| Capacity | 36000‑43000P/H (subject to the shape and size of bottles and the width of labels) |
| The method of speed adjustment | continuously variable speed |
| Labeling accuracy | ±1mm (subject to the bottle shape and label accuracy) |
| Feeding accuracy | ±0.2mm |
| Label roll inner diameter | φ76.2mm |
| Label roll outer diameter | φ500mm |
| Maximum height of label | 150mm |
| Minimum height of label | 15mm |
| Bottle diameter | ≤75mm |
| Air source | 5kg |
| Height of conveyor belt | 1100mm (can be customized according to production‑line requirements) |
| Machine dimensions | L2900*W2500*H2300mm |
| Machine weight | 8000kg |
