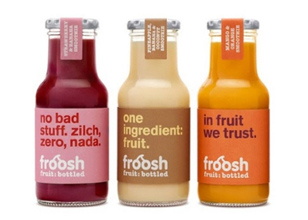

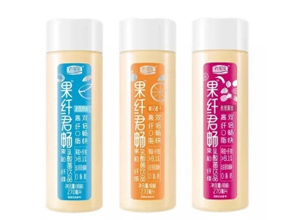

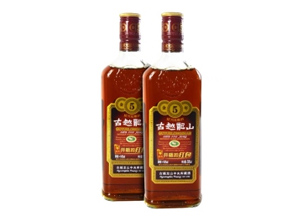

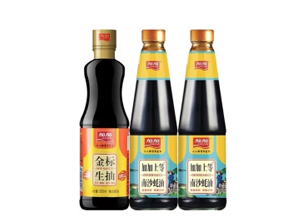

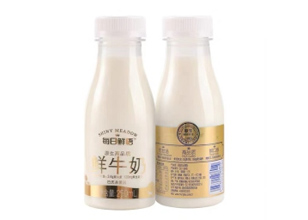

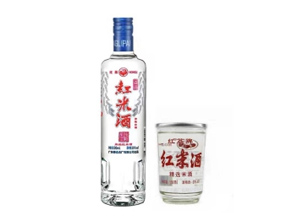

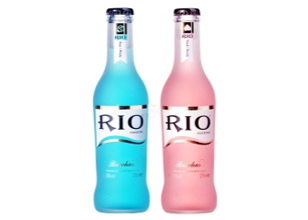

The Self-Adhesive Labeling Machine is a fully automatic pressure-sensitive labeling solution designed for bottles and containers requiring precise, stable and flexible label application. It is suitable for multi-sided, wrap-around and positioning labeling applications, including flat bottles, square bottles and round bottles.
Using a high-performance ABB servo drive system, closed-loop label feeding control and high-speed LEUZE product detection sensors, the machine provides accurate label positioning with a label stopping accuracy of up to 0.2 mm.
The equipment supports multiple labeling configurations, including single-side and double-side labeling on flat bottles, three-side and four-side wrap-around labeling on square bottles, and full-wrap, front-and-back symmetrical or fixed-position labeling on round bottles.
As a fully automatic self adhesive labeller, the machine can operate continuously without dedicated personnel monitoring each labeling cycle.
| Number of work stations | 15 |
| Power supply | AC380V 50Hz 7KW |
| Capacity | 18000BPH (subject to the shape and size of bottles and the width of labels) |
| The method of speed adjustment | continuously variable speed |
| Labeling accuracy | ±1mm (subject to the bottle shape) |
| Feeding accuracy | ±0.2mm |
| Label roll inner diameter | φ76.2mm |
| Label roll outer diameter | φ400mm |
| Maximum height of label | 150mm |
| Minimum height of label | 15mm |
| Bottle diameter | ≤115mm |
| Air source | 5kg |
| Height of conveyor belt | 1100mm (can be customized) |
| Machine dimensions | L2600*W1870*H2100mm |
| Machine weight | 3000kg |
