The Rotary OPP Hot Melt Glue Labeling Machine is a fully automatic labeling solution developed for high-speed OPP label application on bottles and containers. It combines rotary label transfer, hot melt adhesive application, automatic bottle detection, continuous label dispensing and label smoothing into an integrated labeling process.
Designed for high-volume packaging operations, this Rotary OPP Hot Melt Glue Labeling Machine provides stable label feeding and consistent application while reducing manual intervention. Its flexible bottle handling system supports both round and square bottles, making it suitable for production lines that handle different packaging formats.

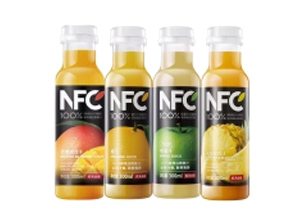

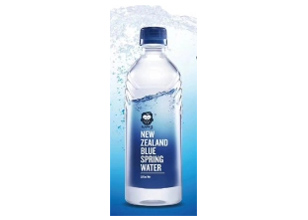

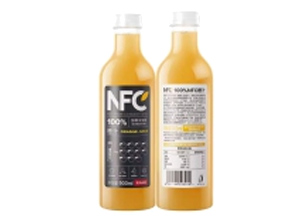

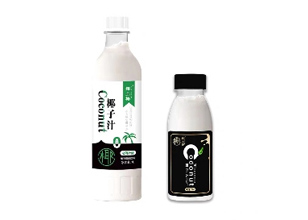

The machine is particularly suitable for beverage, food, household chemical and other consumer packaging applications where high labeling efficiency, reliable operation and consistent package appearance are required.
| Number of work stations | 24 |
| Power supply | AC380V 50Hz 7.5KW |
| Capacity | 24000‑28000BPH (subject to the shape and size of bottles and the width of labels) |
| The method of speed adjustment | continuously variable speed |
| Labeling accuracy | ±1mm (subject to the bottle shape) |
| Feeding accuracy | ±0.2mm |
| Label roll inner diameter | φ76.2mm |
| Label roll outer diameter | φ500mm |
| Maximum height of label | 150mm |
| Minimum height of label | 15mm |
| Bottle diameter | ≤75mm |
| Air source | 5kg |
| Height of conveyor belt | 1100mm (can be customized) |
| Machine dimensions | L2900*W2314*H2100mm |
| Machine weight | 4500kg |
