The OPP Hot Melt Labeling Machine is a fully automatic labeling solution designed for high-speed labeling of large-volume cylindrical containers, including round, square, flat, oval and other column-shaped bottles. Using OPP labels and hot melt adhesive, the machine provides accurate and consistent label application while helping prevent distortion of printed label graphics.
Designed for demanding industrial packaging applications, this OPP Hot Melt Glue Labeling Machine combines independent servo control, precision label feeding, automatic web guiding and a high-performance PLC control system. It delivers stable labeling performance at high production speeds while helping manufacturers reduce packaging material costs.

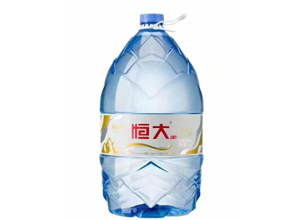

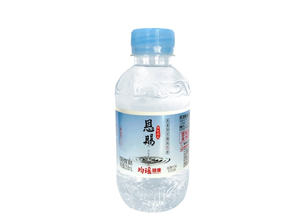

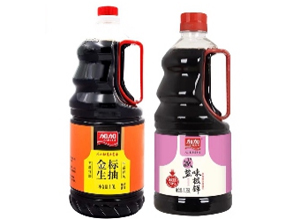

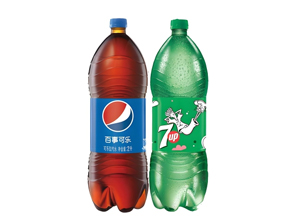

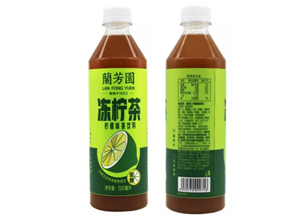

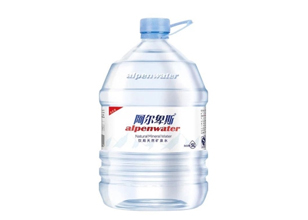

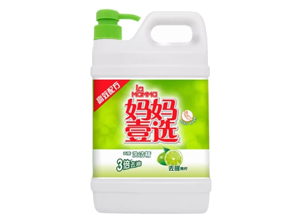

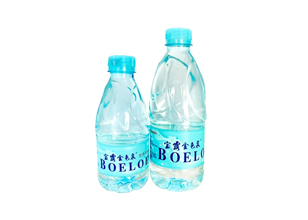

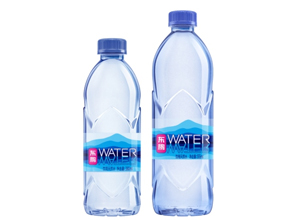

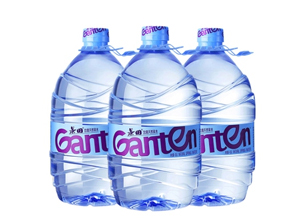

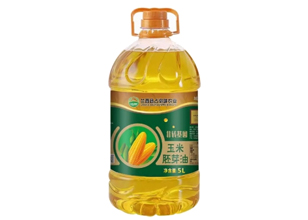

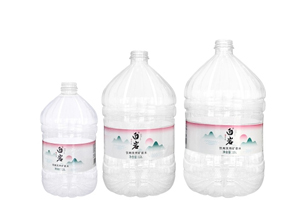

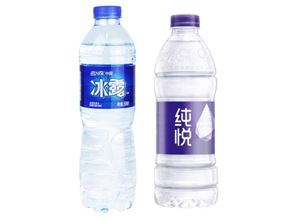

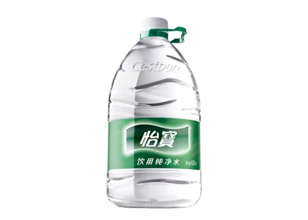

The machine is particularly suitable for beverage bottles and other large-volume containers that require an attractive, uniform and cost-effective labeling solution. As a professional labeling machine manufacturer and supplier, we can also provide customized OPP hot melt labeling solutions according to container dimensions, label specifications and production capacity.
| Number of work stations | 9 |
| Power supply | AC380V 50Hz 20KW |
| Capacity | 15000BPH (subject to the size of bottle and label) |
| The method of speed adjustment | continuously variable speed |
| Labeling accuracy | ±1.5mm (bottle size error within±0.3mm) |
| Bottle diameter | φ≤104mm(need to be customized if larger than this) |
| Label roll inner diameter | φ152.4mm |
| Label roll outer diameter | φ600mm |
| Maximum height of label | 130mm |
| Minimum height of label | 30mm |
| Gluing method | glue at both ends of each label |
| Gluing temperature | 120～160℃ |
| Label material | OPP, pearlescent film, paper‑plastic composite film, paper |
| Air source | 5kg |
| Machine dimensions | L2105mm*W1505mm*H2100mm |
| Machine weight | 4000kg |
